Weld Mesh

Mesh, Straps & Plate Washers.

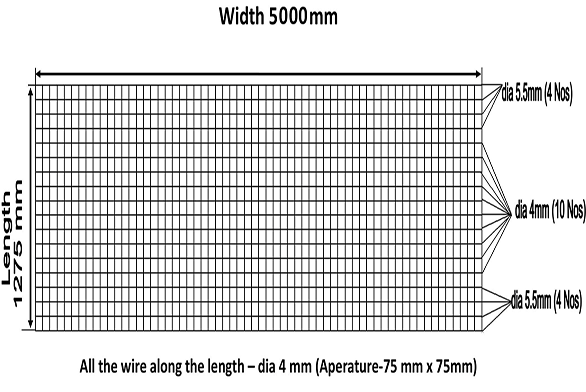

Rigid Wire Mesh:

One meter module is in the size of 1.00 m long X 5.00 m width module. However , it shall be supplied in the sizes of 1.275 m long X 5.00 m wide as one unit. Weight of each module : Minimum of 120 kgs. The 4mm/5.5mm diameter wire rod shall be of BS 4483 from cold reduced deformed steel wires according to BS:4482 exactly as structural mesh for concrete reinforcement.
Physical Properties:
Typical Yield strength of Wire: 450 MPa
Typical Ultimate strength of Wire: 500 MPa
Weld Shear Strength: 350 MPa(Minimum)
Physical Diemensions:
Module Width mm: 4M / 5.3Mconditions.
Module Length: 1275mm.
Wire Diameter: 4.00mm/5.00mm
Wire aperture: 75mmx75mm

Underground Mesh:

The Mokshith Mining Company welded wire mesh sheet has been designed to provide a safe working environment by providing surface support on the mine roof and rib.The welded wire mesh sheet is manufactured from individual wire strands electrically resistant welded together to form a mesh sheet.

The welded wire mesh can be supplied in a variety of configurations using different wire gauges and wire spacing. The objectives of the welded wire mesh sheet have been incorporated into the design by a number of features:

• Designed to suit customers specific mine drive dimensions and ground conditions.
• Suitable for shotcrete applications.
• Provides consistency of rock bolt patterns.
• Flush all round.
• Easy to handle.

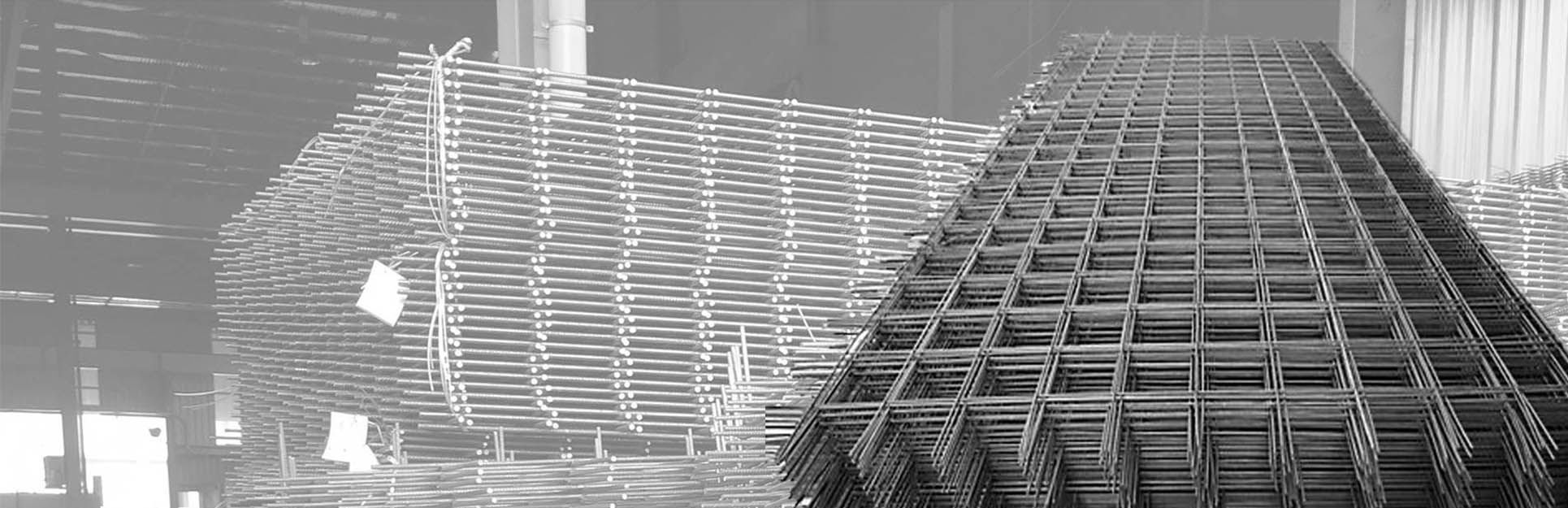

Welded Wire Mesh, or Welded Wire fabric weldmesh" is an electric fusion welded prefabricated joined grid consisting of a series of parallel longitudinal wires with accurate spacing welded to cross wires at the required spacing.

Machines are used to produce the mesh with precise dimensional control. The product can result in considerable savings in time, labour and money.

Uses of Welded Wire Mesh - The welded wire mesh is a metal wire screen that is made up of low carbon steel wire or stainless steel wire. It is available in various sizes and shapes. It is widely used in agricultural, industrial, transportation, horticultural and food procuring sectors. It is also used in mines, gardening, machine protection and other decorations.
Weld mesh- is the term given to the kind of barrier fencing that is manufactured in square, rectangular or rhombus mesh from steel wire, welded at each intersection.
Welded wire fabric (WWF) is also sometimes used in reinforced concrete, notably for slabs.
Hot dipped galvanized Welded Mesh - This type of mesh wire is generally made up of plain steel wire. At the time of processing it goes through a hot zinc covering process. This type of welded mesh ware with square opening is ideal for animal cage structuring, fabricating the wire boxes, grilling, partition making, grating purposes and machine protection fencing.
